SINGLE-PLY MEMBRANE Metal Roof Deck Ballasted, stone

Overview

Steel deck with loosely laid single-ply membrane, ballasted with stone, depending on uplift requirement with/without cover board or slip sheet, XPS insulation over gypsum board thermal barrier and the metal roof deck.

Get all the construction documentation you'll need, in a single click:

Products in this Solution

Performance Attributes

Key Attributes:

Durability
Easy Installation
Limited Warranty
Moisture Management

ASHRAE 90.1 Compliant

ASHRAE Standard 90.1 requires Continuous Insulation (CI) be used for all commercial and some residential buildings in the United States. Continuous insulation is defined in 90.1 as “insulation that is continuous across all structural members without thermal bridges other than fasteners and service openings. It is installed on the interior, exterior, or is integral to any opaque surface of the building envelope”.

Learn More

Additional Attributes and Compliance

This wall assembly enclosure also meets the following codes and standards. Click a standard to learn more

Drawings

Construction Details including BIM objects and CAD drawing files for Enclosure Solutions Foundation Systems are available for download below.

BIM Objects

Commercial Roof, Steel Deck BIM

Owens Corning Enclosure Solutions Steel Deck Roofing BIM

CAD Files

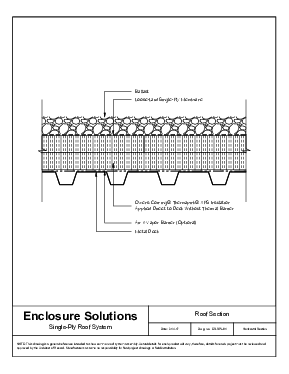

Single-Ply, Stone Ballasted Roof

Steel Deck with XPS

With Gypsum Board Thermal Barrier

Single-Ply Ballasted Roof

Steel Deck with XPS direct to deck

Loose-laid single-ply, loose stone ballast

Literature

The time consuming work of researching and specifying individual products is completed for you and delivered with fully detailed documentation, for more efficient and accurate bidding and planning. Get all the construction documents you need in a single click:

Specify This SolutionZIP | 10.1 MB
